Specify the right roller system for the opening in front of you. Whether a project needs interior solar shades that soften harsh sunlight and keep the outside view, or weatherproof outdoor roller blinds for terraces and patio enclosures, the same aluminium hardware, custom sizing and control options carry across both.
Interior and exterior roller systems share the same tube, fabric and control architecture, but they are specified against different loads: glare and privacy on the inside, weather and UV on the outside. Pick the path that matches the opening.
For glass walls, office windows and living space where you want daylight without the harshness.
For terraces, patio enclosures and exterior glazing that sit in direct sun and weather.
Trade language is loose in this category. This table fixes what each term means on this page so a specification written by one person can be read the same way by another.
| Term | What it means here | Overlap / difference |
|---|---|---|
| Interior sunscreen shade | A roller-mounted shade using breathable sunscreen fabric, installed inside the frame to filter daylight and cut glare. | Shares the roller construction, aluminium top rail, custom sizing, motorized option and cordless clutch with the exterior version. Differs in fabric coating and mounting position. |
| Exterior roller blind | A roller blind specified for terraces, patios and outside glazing, built with weatherproof coatings and UV-stabilized fabrics. | Same hardware family and controls; adds weather and UV resistance and mounts outside the glazing line. |
| Blackout roller shade | A roller shade using an opaque blackout fabric for full privacy and a dark, glare-free room. | Available inside the same roller range. Fabric choice changes performance, not the tube, rail or control hardware. |
Because the hardware is shared and only the fabric and mounting change, one specification product format can cover both interior and exterior openings. Get the rail diameter and control type right once, then swap the fabric and the bracket position per elevation instead of writing a separate system for each.
The fabric family decides nearly every performance answer a client will ask about. The table below crosses the three fabric routes carried in this range against the six questions that come up most often in a project review.
Read the columns as a chain: glare reduction and diffused light are the daylight trade-off, privacy and light blocking are the comfort trade-off, and UV durability determines whether the fabric belongs inside or outside.

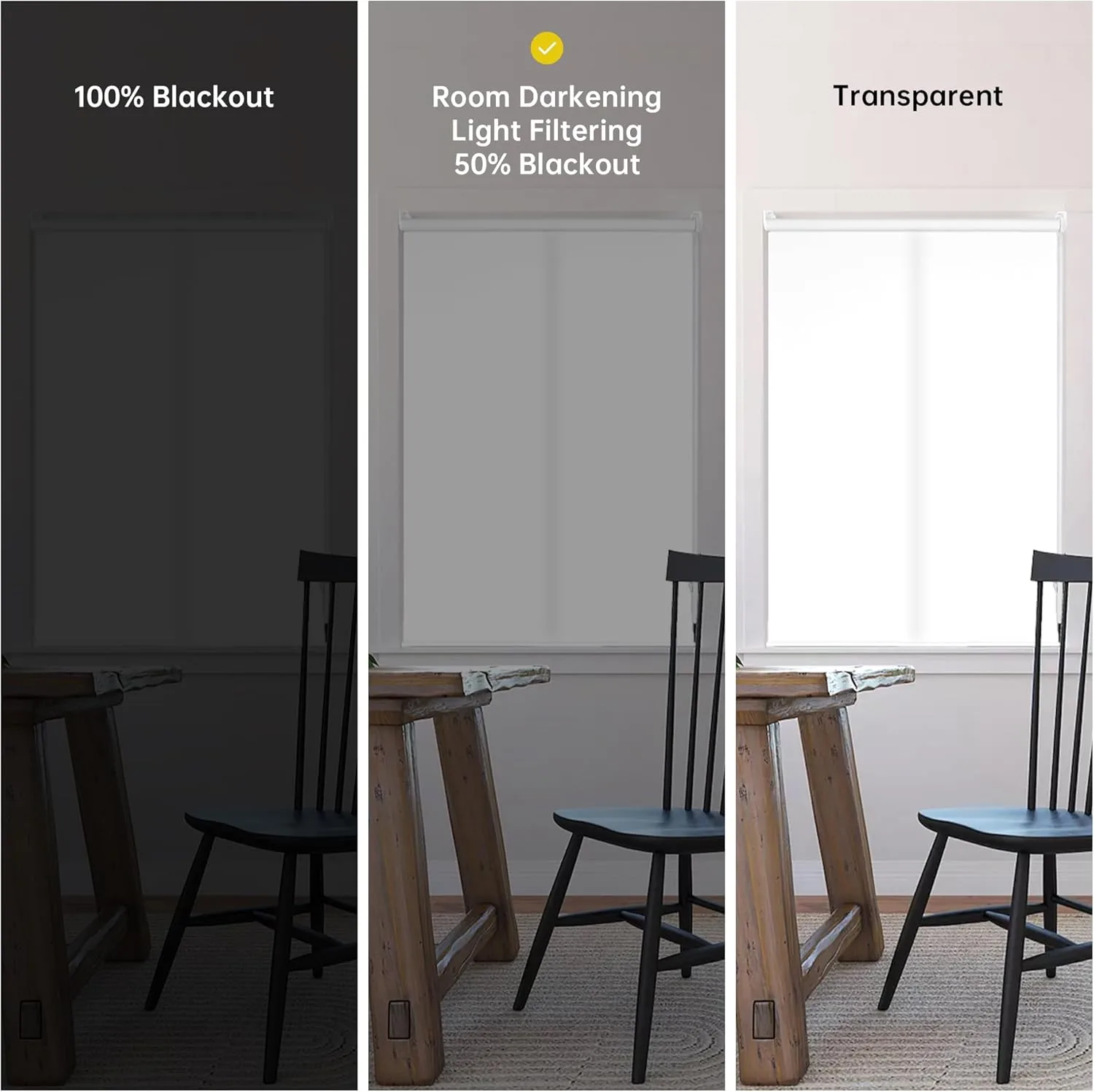

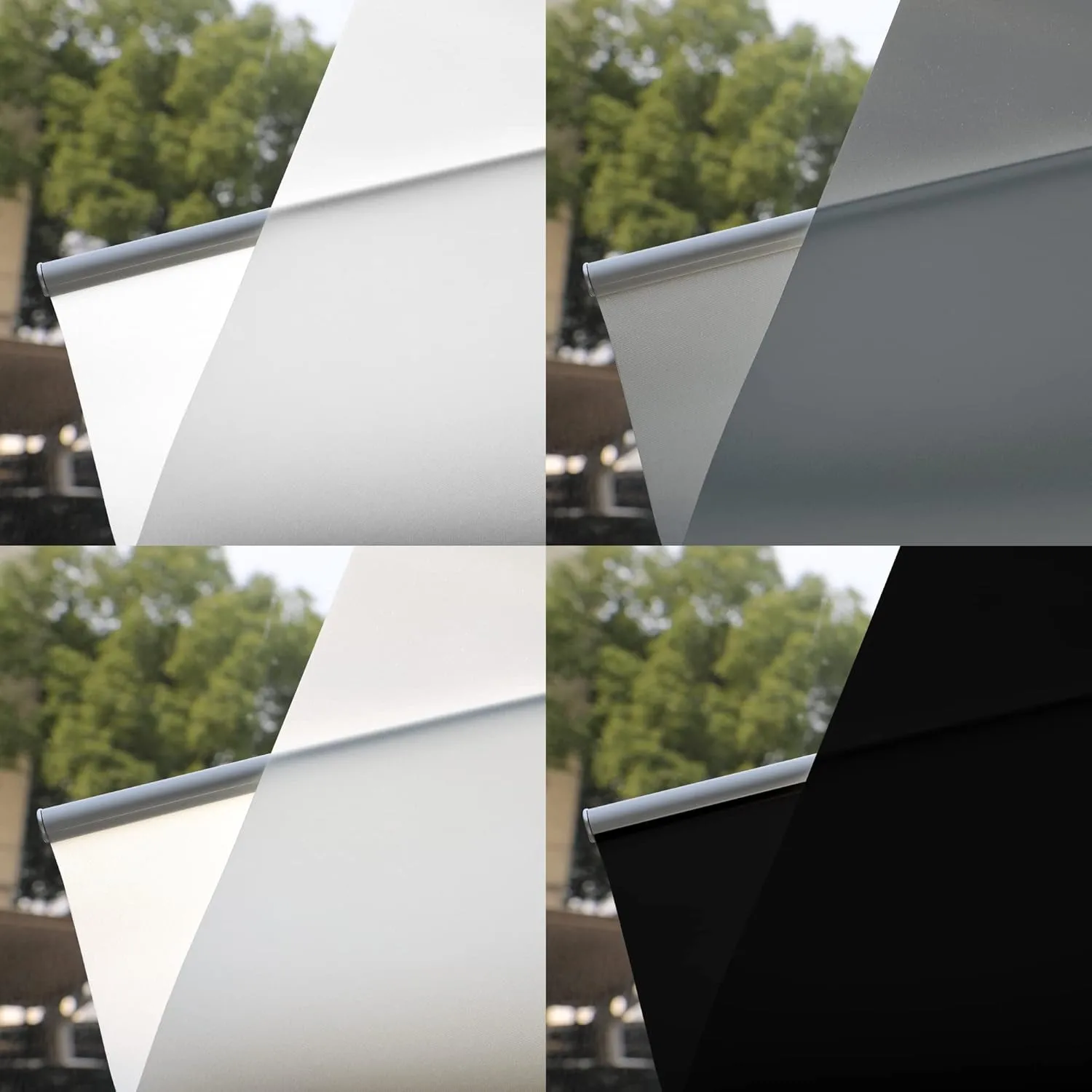

| Fabric family | Glare reduction | Diffused light & view | Privacy | Light blocking | Fade & UV durability | Typical application |
|---|---|---|---|---|---|---|
| Breathable sunscreen | Softens harsh sunlight and blocks glare effectively. | Allows gentle diffused light to enter the room while the outside view stays readable. | Reduces daytime visibility from outside; not specified as a blackout-grade privacy fabric. | Partial — the room stays bright rather than dark. | High-tensile, fade-resistant material engineered for durability under prolonged UV exposure. | Offices, glazed corridors, west-facing rooms and living areas. |
| Blackout | Glare is removed along with most external light. | Diffused daylight is not retained; the view is intentionally closed off. | Opaque design ensures full privacy. | Blocks most external light for a dark, glare-free space. | Fade-resistant fabric, simple to clean with a damp cloth. | Bedrooms, media rooms, hospitality guest rooms and projection space. |
| UV-stabilized weatherproof outdoor finish | Cuts glare at the glazing line before the sun reaches the interior. | Interior brightness and the view are retained when a sunscreen openness is chosen. | Depends on the fabric openness selected for the elevation. | Reduces solar load; the range is stated to help regulate room temperature. | Weatherproof coatings and UV-stabilized fabrics specified for exterior exposure. | Terraces, patio enclosures and exterior glazing in direct sun. |

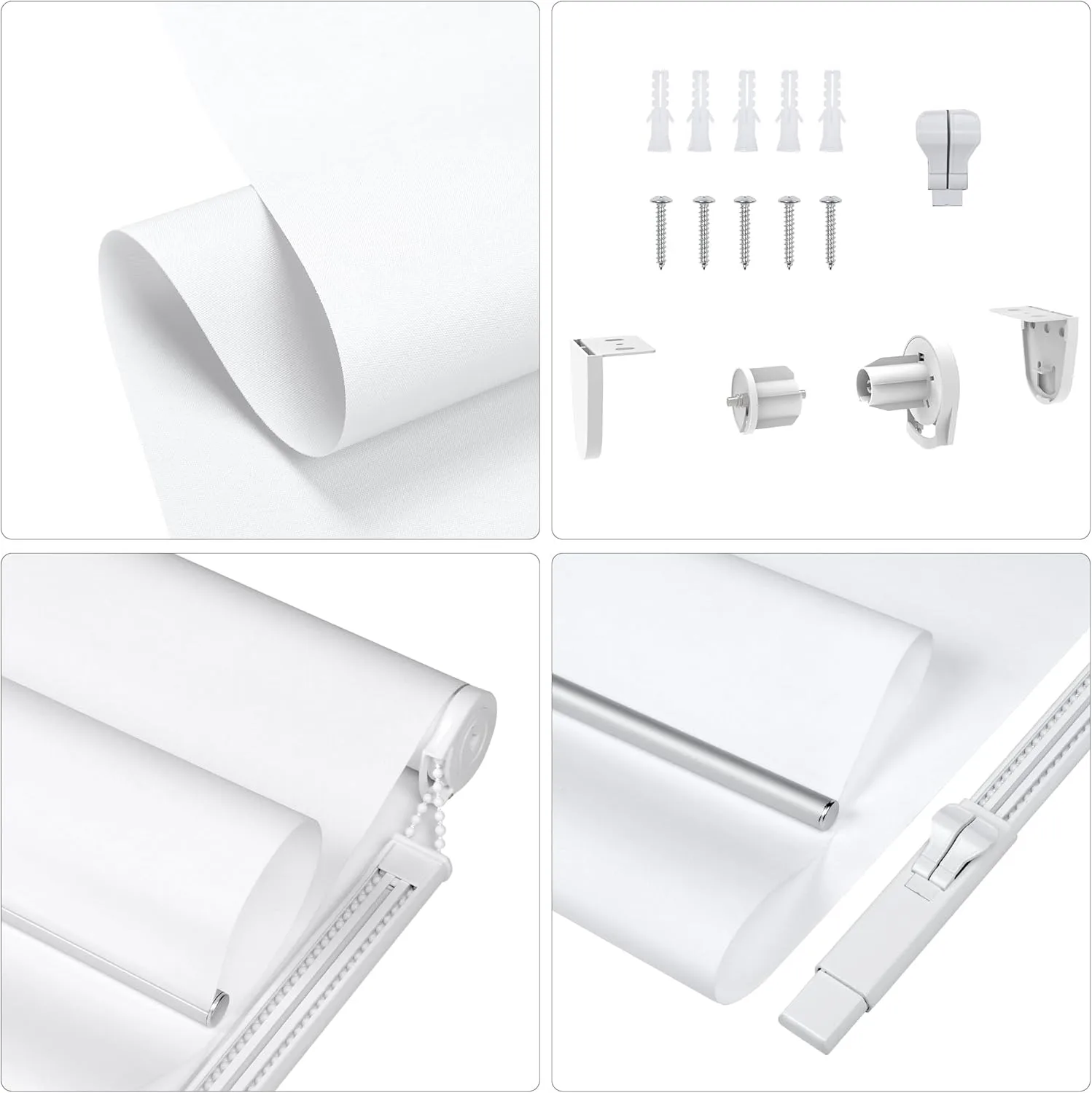

Top rails are calibrated from 28 mm to 38 mm. The rail you choose is a function of two things only: how wide the opening is, and how heavy the fabric on the tube is.
The selection logic is short. Light sunscreen fabric on a narrow or standard window runs comfortably on the smaller tube. Wide spans and heavier blackout fabric need the larger tube so the drop stays straight and the fabric carries without sagging.
Three control routes are carried in this range, and each one answers a different question: how the drop is adjusted, who is allowed to touch it, and whether the building should adjust it for you.
Smooth, quiet chain operation for precise height adjustment. The simplest route where manual control by the occupant is acceptable.
Advanced clutch mechanisms eliminate cords, complying with international child safety standards and reducing entanglement hazards. The usual choice for family housing and hotel guest rooms.
Programmable automation via remote or building management systems, with precise, noiseless operation optimised for energy-saving building management. Rapid light modulation is stated to lower HVAC loads, and the system supports integration with smart home or commercial control networks.
Mounting is usually the constraint that decides a specification late in the process, so it is worth settling early. The aluminium hardware integrates with standard window frameworks and supports electric control without structural reinforcement, which keeps the roller system off the structural drawing.
For rental or retrofit work, no-drill installation technology suits situations where invasive modifications are restricted. It accelerates the installation workflow while maintaining firm, secure mounting, so a tenant fit-out can be delivered without repairing a frame afterwards.
Buyer decision: if the frame cannot be drilled, specify the no-drill route and confirm the fabric drop at survey stage — the bracket position, not the fabric, is what changes.
Match the opening to the four specification fields that actually get ordered: fabric, top rail, control and mounting. Every cell below is drawn from the options stated for this product.
| Scenario | Fabric | Top rail | Control | Mounting | Buyer decision |
|---|---|---|---|---|---|
| West-facing office glass wall | Breathable sunscreen | 38 mm for wide spans | Motorized with building management integration | Standard frame, no structural reinforcement | Choose sunscreen to remove glare without losing the daylight the space was designed around. |
| Patio enclosure in direct sun | UV-stabilized weatherproof outdoor finish | 38 mm | Motorized, remote or building system | Exterior mounting on standard brackets | Weatherproof coating and UV-stabilized fabric are the deciding fields here, not colour. |
| Hotel guest room | Blackout | 28 mm or 38 mm by width | Cordless clutch | Standard frame | Opaque fabric gives full privacy and dark-out; cordless satisfies child-safety requirements. |
| Rental apartment retrofit | Sunscreen or blackout | 28 mm | Beaded chain | No-drill installation | No-drill mounting protects the frame and speeds handover on short programmes. |
| Wide retail frontage | Blackout or sunscreen | 38 mm | Motorized, programmable | Standard frame | Wide spans and heavier fabric make the larger tube the lower-risk choice. |
| Smart-controlled meeting suite | Breathable sunscreen | 38 mm | Electric with network integration | Standard frame, no structural reinforcement | Confirm the control network and grouping before ordering, since automation is the specification here. |
These are the fields to fill in on a schedule before an enquiry goes out. Anything not listed below is set by the fabric and control selection rather than ordered separately.
| Field | Option as stated | What it changes on site |
|---|---|---|
| Colour | White, grey, black, beige and customized colour | Finish coordination with frames, ceilings and façade palettes. |
| Size | Customized size | Drop and width are made to the measured opening rather than trimmed on site. |
| Fabric options | Breathable sunscreen and blackout variants | Daylight versus dark-out performance; exterior work adds weatherproof and UV-stabilized fabric. |
| Top rail | Aluminium, calibrated from 28 mm to 38 mm | Span capability and how straight a heavy fabric hangs. |
| Control | Beaded chain, cordless clutch, motorized / electric | Who adjusts the shade, and whether the building system does it. |
| Automation | Programmable via remote or building management systems; smart home and commercial control networks supported | Grouping, scheduling and energy-saving operation across an elevation. |
| Mounting | Standard window framework integration or no-drill installation | Whether the frame is modified during installation. |
| Customization scale | Modular adaptability for project-specific and wholesale procurement | How easily a schedule of mixed sizes is fulfilled in one order. |
Send the opening sizes, elevations and preferred control type. Custom colour, custom size and modular adaptability for wholesale procurement are all available, and the quote is built around your project requirements rather than a fixed catalogue list.
Keep adjacent product options together for a faster catalog comparison.

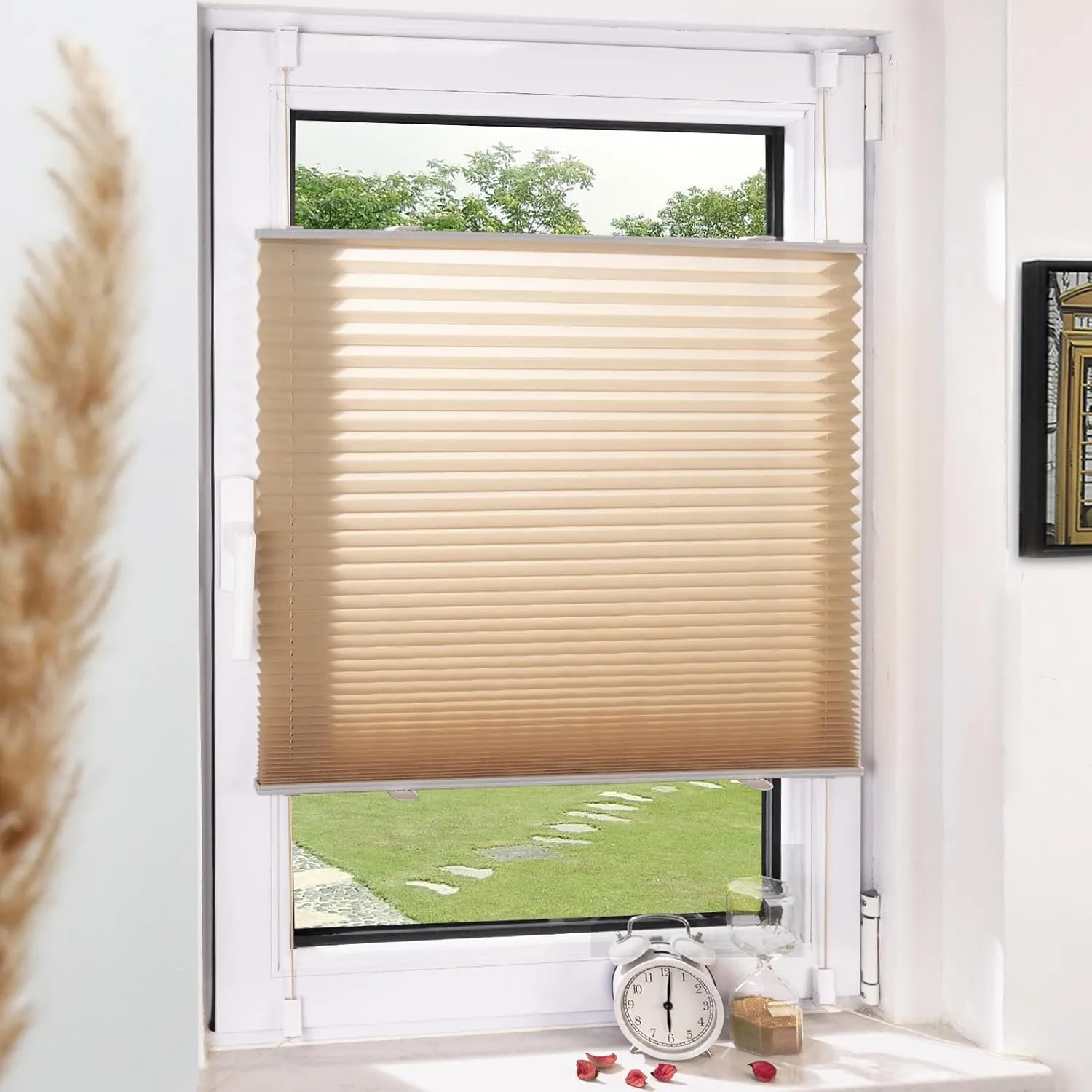

Unique Structure: Pleated shades have a distinctive folded design that expands and contracts like an accordion, creating a neat and textured appearance.Light and Privacy Control:

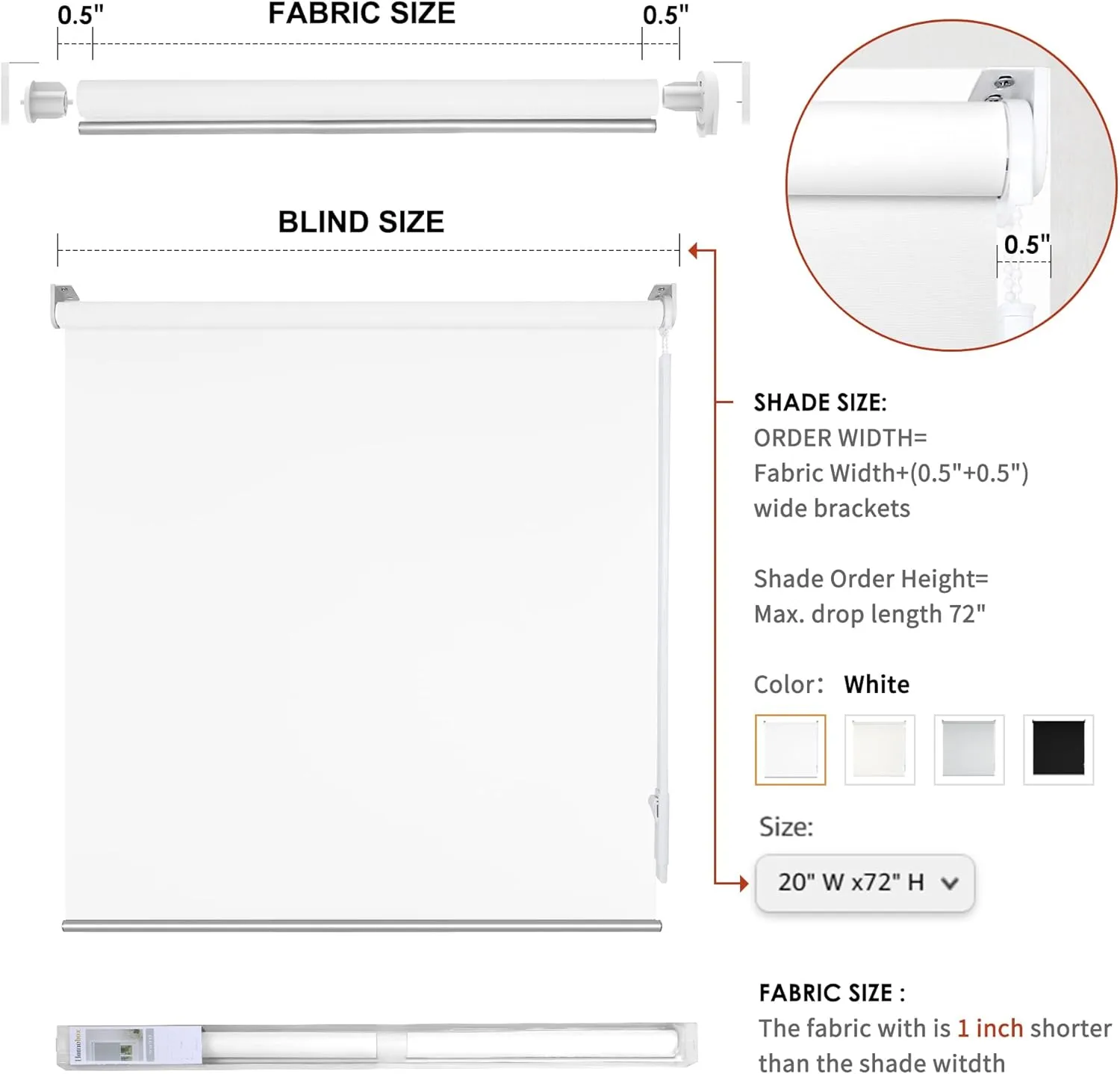

View productsize is customized to the measured opening, and top rails are calibrated from 28 mm to 38 mm. supply the width and drop for each elevation, and the fabric is cut to that measurement rather than trimmed on site.
a breathable sunscreen fabric softens harsh sunlight, blocks glare effectively and still allows gentle diffused light and the outside view to remain. specify blackout fabric only where the room needs to be darkened and full privacy is the priority.
three routes: smooth beaded chain for precise manual height adjustment, a cordless clutch mechanism that eliminates cords and complies with international child safety standards, and a motorized electric system with programmable automation via remote or building management systems.
yes. no-drill installation technology is available for rental or retrofit applications where invasive modifications are restricted, and it maintains firm, secure mounting while speeding up the installation workflow.

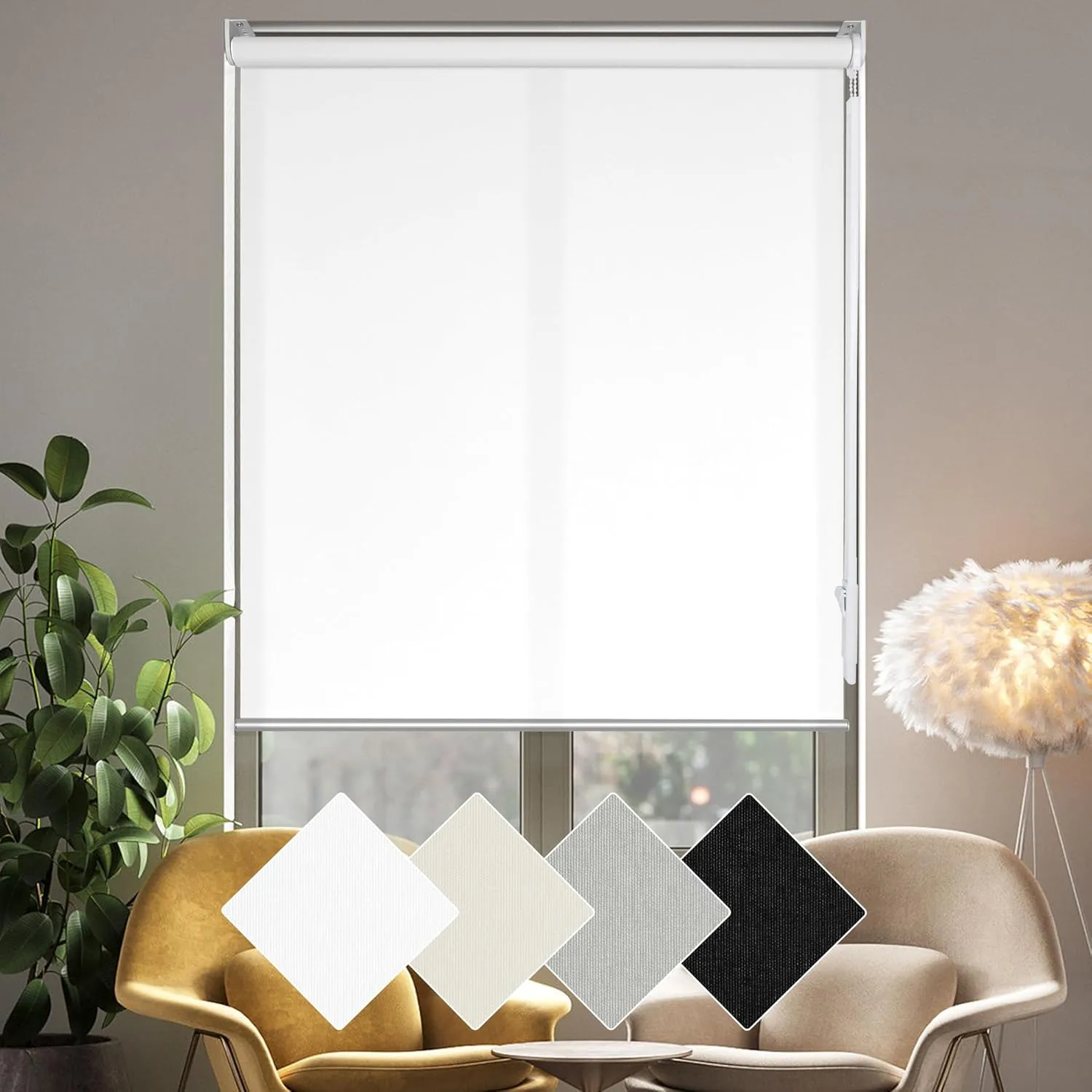

white, grey, black and beige are stated options, and customized colour is available for projects that need to match a frame or façade palette.
use the quote route on the product page or send your schedule through the contact us page. custom colour, custom size and modular adaptability for wholesale procurement are supported, so include the number of openings, sizes and preferred control type with your enquiry.
